Change the Boost mode settings

To change the Boost mode settings:

  1. Press the Change mode button until the icon of the Boost mode appears on the display:
  2. Please wait until the main view of the Boost mode opens:
  3. Select Boost information:
  4. Select Edit.

    The setup screen for the mode timer function opens:

  5. Use the arrow buttons to turn the timer function on or off. The options are:
    • On — When the timer function is on, the selected ventilation mode is active for the period indicated by the timer.
    • Off — When the timer function is off, the selected ventilation mode is active until you change the mode (or the week clock changes the mode).
  6. Select Right arrow.

    The screen for setting the timer duration for the mode opens:

  7. Use the Plus and Minus buttons to set the timer in hours and minutes for the mode. This value indicates the duration of boosted ventilation when the Boost mode is activated.
  8. Select Right arrow.

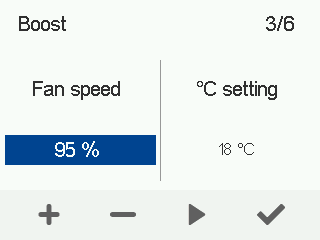

    The fan speed control screen opens:

  9. Use the Plus and Minus buttons to set the fan speed as a percentage of the maximum output for this ventilation mode.

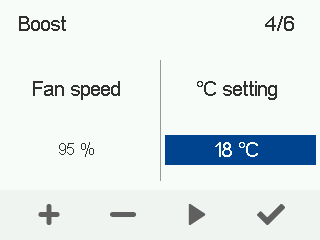

  10. Select Right arrow. The temperature control screen opens:
  11. Use the Plus and Minus buttons to set the target supply air temperature for this ventilation mode.
    The temperature range is +5°C – +25°C.
  12. Select Right arrow.

    The screen for automatic fan speed control based on relative humidity opens:

  13. Use the arrow buttons to enable or disable automatic fan speed adjustment based on relative humidity.
  14. Select Right arrow.

    The screen for automatic fan speed control based on carbon dioxide content opens:

  15. Use the arrow buttons to enable or disable automatic fan speed adjustment based on carbon dioxide content.
  16. Select OK.
The Boost mode settings have now been set.
