Fan test

Carry out the fan test to easily check the operation of the ventilation unit’s fans.

  1. Select Settings.
  2. Go to the Maintenance menu and select Fan test.

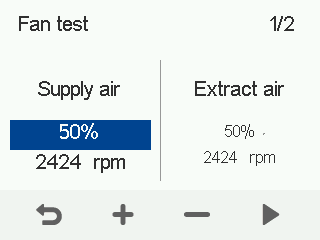

  3. The Supply air screen opens:
  4. Use the Plus and Minus buttons to set the supply air volume as a percentage of the maximum output.
    You can hear when the fan speed changes according to the value set. The fan’s rotational speed is shown in the rpm field.
  5. Select Right arrow.

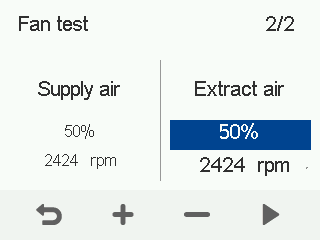

    The Extract air screen opens:

  6. Use the Plus and Minus buttons to set the extract air volume as a percentage of the maximum output.
    You can hear when the fan speed changes according to the value set. The fan’s rotational speed is shown in the rpm field.
  7. Select Back.
The fan test has been completed.
