Bypass settings of the HR cell

  1. Select Settings:
  2. Select Expert settings with the arrow buttons.
  3. Select OK:

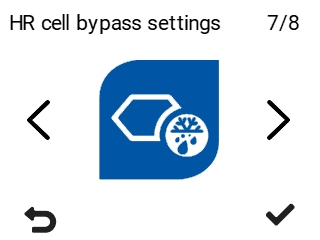

  4. Use the arrow buttons to select HR cell bypass settings.
  5. Select OK:

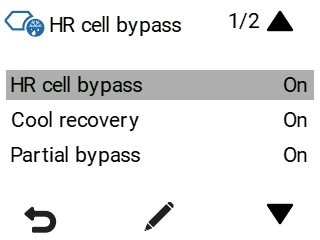

    The HR cell bypass screen opens:

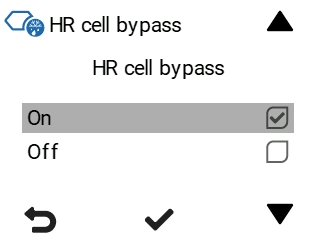

  6. Select with the arrow buttons:

    • Bypass On — Bypass automatics are in use.

    • Bypass Off — Bypass automatics are not in use. The Heat recovery mode is active.

  7. Select with the arrow buttons:

    • Partial bypass On — Partial bypass is enabled when bypass is activated and the outdoor air temperature exceeds the value set for the heating season.

    • Partial bypass Off — Partial bypass is not in use.

    • Special modes — Partial bypass is always in use.

      IMPORTANT:

      The Special modes mode is only used in special modes when the heat load is large. Do not select Special modes without consulting an HVAC expert.
