Calibration

During calibration, the unit’s actual operating range is determined in relation to the ducts in use. This test is mandatory. The test takes no longer than one minute.

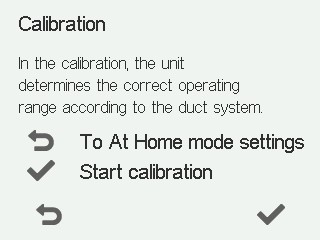

  1. The calibration screen opens after the At Home mode settings have been configured.

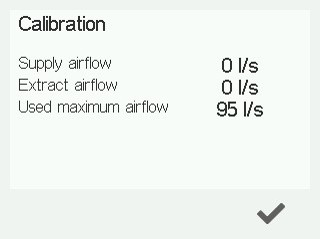

  2. After calibration, the unit’s actual maximum air flow is shown in relation to the ducts in use.
If the unit indicates that the Away or At Home modes cannot be activated, go back and adjust the air flows for the At Home mode.
