Supply/extract air volumes and input powers

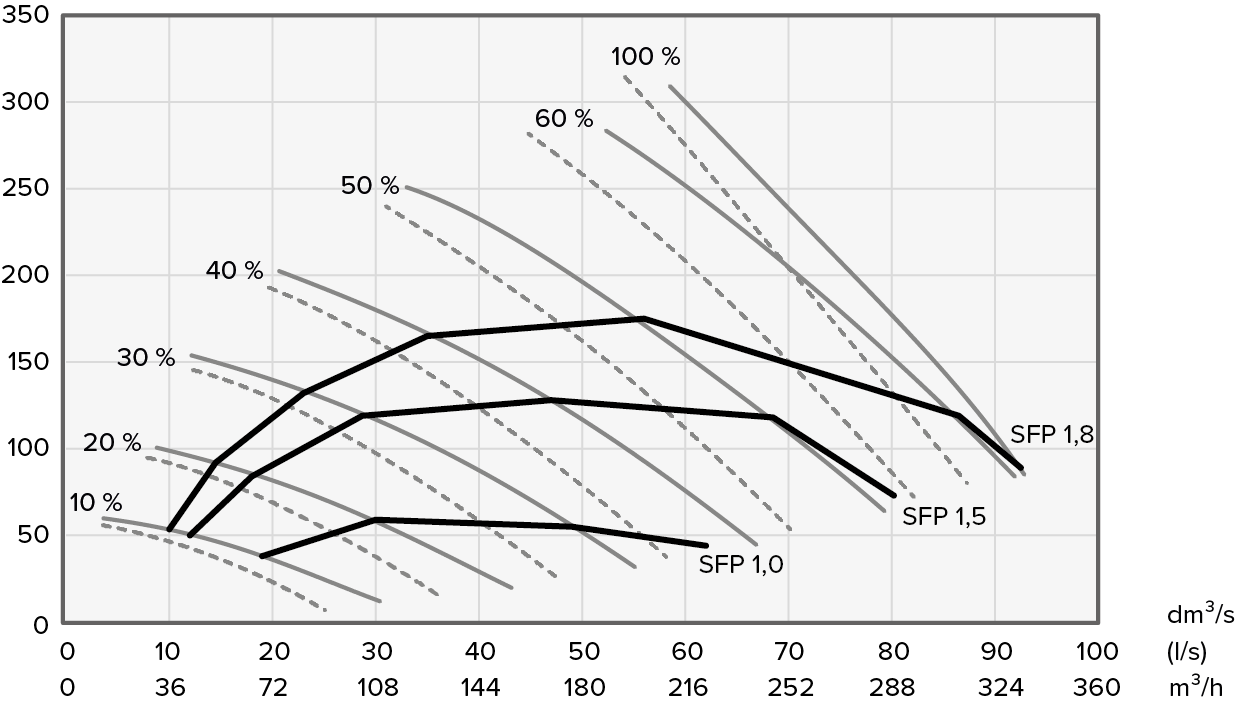

Figure 1. Supply and extract air volumes
Continuous line (—)
Extract air
Broken line (- -)
Supply air
SFP = Input power (total) (W) Air flow (max) (dm3/s)

SFP rate (Specific Fan Power) recommended value <1.8 (kW/m3/s).

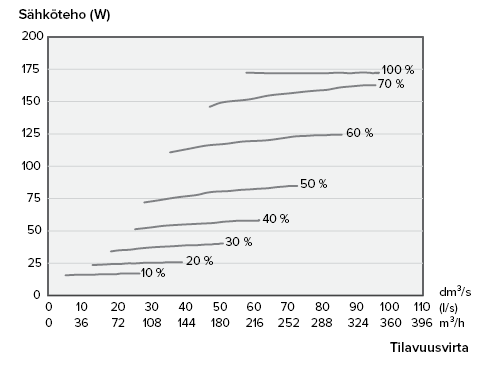

Figure 2. Fan input power
