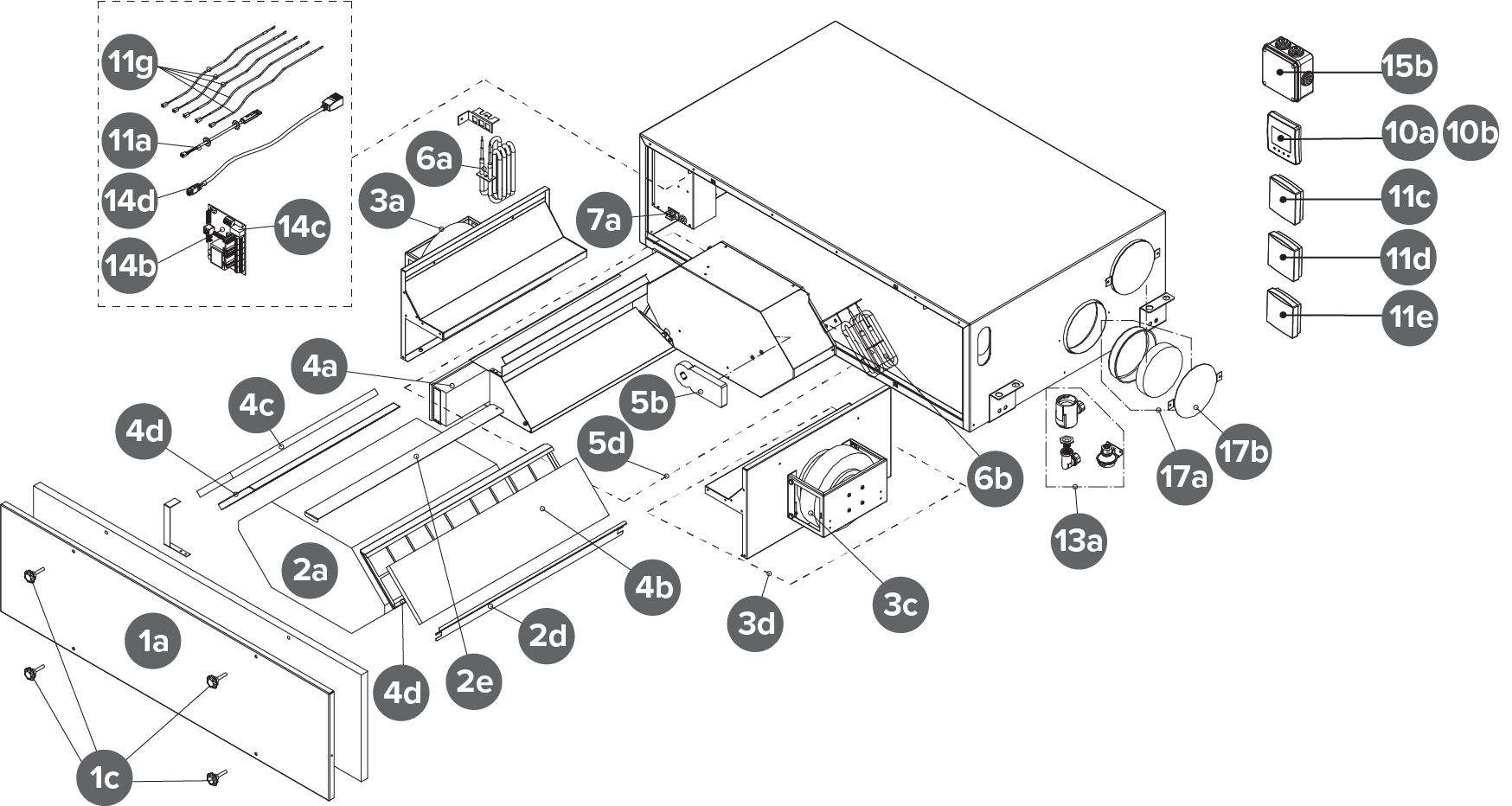

Exploded view and list of spare parts
| No. | Part |
|---|---|
| 1a | Door (Vallox TSK Multi 50 MV) |
| Door (Vallox TSK Multi 80 MV) | |
| 2c | Finger screw for the door |
| 2a | Heat recovery cell, plastic (Vallox TSK Multi 50 MV) |
| Heat recovery cell, aluminium (Vallox TSK Multi 50 MV) | |
| HR cell, enthalpy (Vallox TSK Multi 50 MV) | |
| Heat recovery cell, plastic (Vallox TSK Multi 80 MV) | |
| Heat recovery cell, aluminium (Vallox TSK Multi 80 MV) | |
| HR cell, enthalpy (Vallox TSK Multi 80 MV) | |
| 2d | Side sealing slip of the HR cell (Vallox TSK Multi 50 MV) |
| Side sealing slip of the HR cell (Vallox TSK Multi 80 MV) | |
| 2e | Upper sealing strip of the HR cell (Vallox TSK Multi 50 MV) |
| Upper sealing strip of the HR cell (Vallox TSK Multi 80 MV) | |
| 3a | Extract air fan (Vallox TSK Multi 50 MV R) |
| Extract air fan (Vallox TSK Multi 80 MV L) | |
| 3c | Supply air fan (Vallox TSK Multi 50 MV) |
| Supply air fan (Vallox TSK Multi 80 MV) | |
| 3d | Fan assembly, R and L models (Vallox TSK Multi 50 MV) |
| Fan assembly, R and L models (Vallox TSK Multi 80 MV) | |
| 4a | Fine filter for supply air (Vallox TSK Multi 50 MV) |
| Fine filter for supply air (Vallox TSK Multi 80 MV) | |
| 4b | Coarse filter for supply air (Vallox TSK Multi 50 MV) |
| Coarse filter for supply air (Vallox TSK Multi 80 MV) | |
| 4c | Coarse filter for extract air (Vallox TSK Multi 50 MV) |
| Coarse filter for extract air (Vallox TSK Multi 80 MV) | |
| 4d | Filter stand (coarse filter for supply air, 500 mm, Vallox TSK Multi 50 MV) |
| Filter stand (coarse filter for supply air, 580 mm, Vallox TSK Multi 80 MV) | |
| Filter stand (coarse filter for extract air, 400 mm, Vallox TSK Multi 50 MV) | |
| Filter stand (coarse filter for extract air, 450 mm, Vallox TSK Multi 80 MV) | |
| 5b | Bypass damper motor, R model |
| Bypass damper motor, L model | |
| 5d | Bypass duct assembly (Vallox TSK Multi 80 MV R) |
| Bypass duct assembly (Vallox TSK Multi 80 MV L) | |
| Bypass duct assembly (Vallox TSK Multi 80 MV R) | |
| Bypass duct assembly (Vallox TSK Multi 80 MV L) | |
| 6a | Post-heating resistor, R model |
| Post-heating resistor, L model | |
| 6b | Additional heating resistor, R model (Vallox TSK Multi 50 MV) |
| Additional heating resistor, L model (Vallox TSK Multi 80 MV) | |
| 7a | Safety switch |
| 10a | MyVallox Control panel |
| 10b | MyVallox Touch control panel |
| 11a | Internal humidity and carbon dioxide sensor |
| 11c |
MyVallox carbon dioxide sensor (optional) |
| 11d |
MyVallox humidity sensor (optional) |
| 11e | MyVallox VOC sensor (optional) |
| 11g | NTC sensor kit |
| 13a | Siphon Vallox Silent Klick |
| 14b | Motherboard |
| 14c | Glass tube fuse 63mA slow 5x20mm |
| 14d | RJ45 extension cable |
| 15b | Connection box assembly |
| 17a | Plug (Vallox TSK Multi 50 MV) |
| Plug (Vallox TSK Multi 80 MV) | |
| 17b | Cover panel 100 mm (Vallox TSK Multi 50 MV) |
| Cover panel 125 mm (Vallox TSK Multi 80 MV) |
