Dimensions and duct outlets

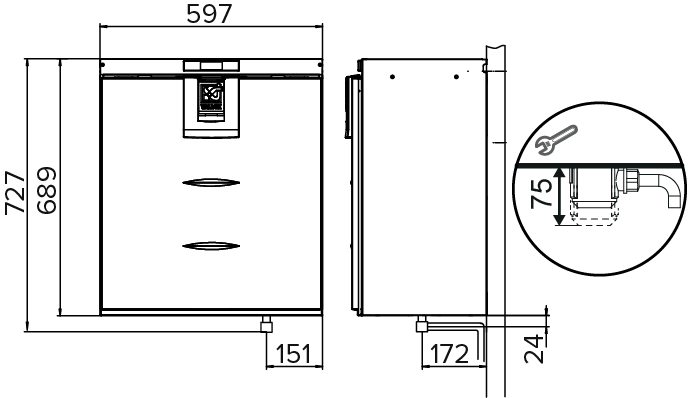

Figure 1. Dimensions with the condensing water outlet

The total height with the condensing water outlet is 727 mm (installation space + 2 mm).

The total height with the Vallox Silent Klick siphon is 744 mm (installation space + 6 mm).

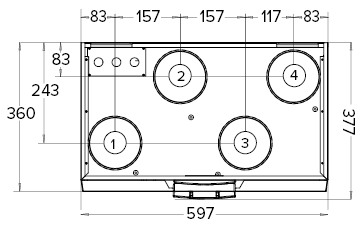

Figure 2. Duct outlets, R model

Inner diameter of the female collar ∅ 125 mm.

1
Supply air from the unit to the apartment
2
Extract air from the apartment to the unit
3
Outdoor air to the unit
4
Exhaust air flowing outdoors from the unit

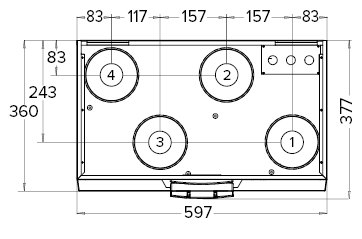

Figure 3. Duct outlets, L model (left-handed)
1
Supply air from the unit to the apartment
2
Extract air from the apartment to the unit
3
Outdoor air to the unit
4
Exhaust air flowing outdoors from the unit
