Dimensions and duct outlets

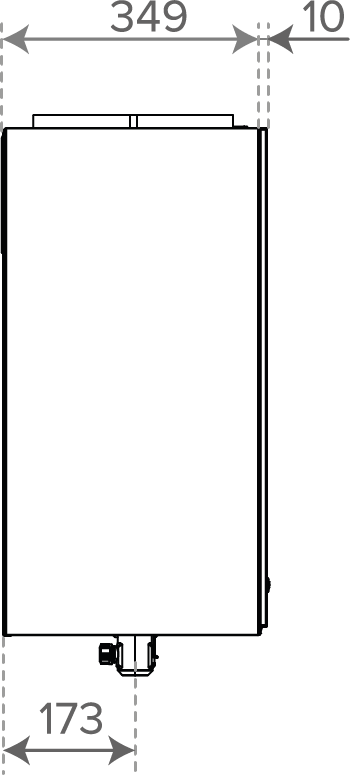

Figure 1. Dimensions Vallox 51 MV

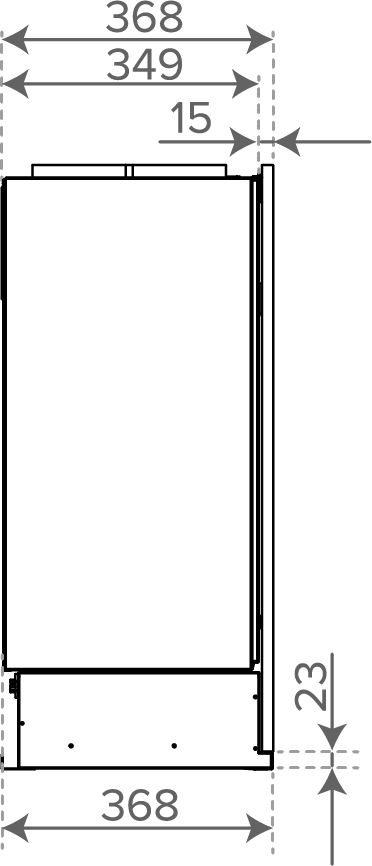

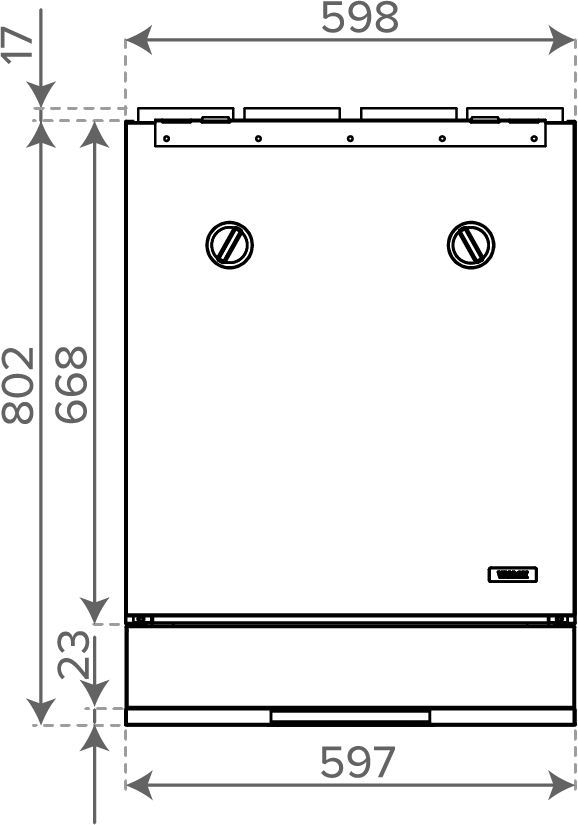

Figure 2. Dimensions Vallox 51K MV

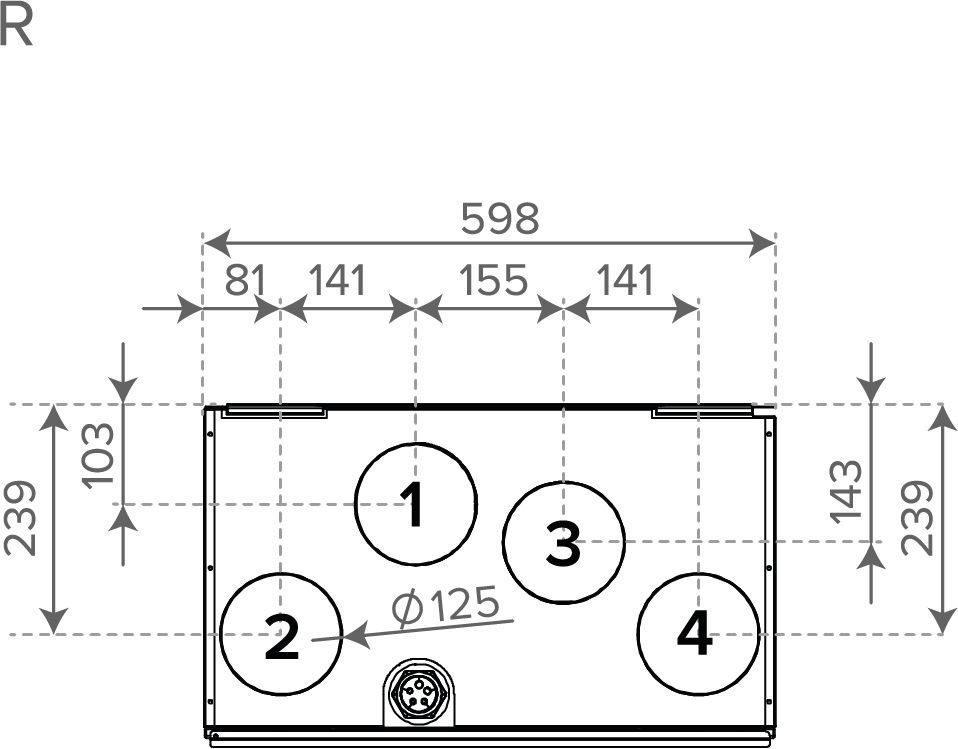

Figure 3. Duct outlets, R model

Inner diameter of the female collar ∅ 125 mm.

1
Supply air from the unit to the apartment
2
Extract air from the apartment to the unit
3
Exhaust air flowing outdoors from the unit
4
Outdoor air to the unit

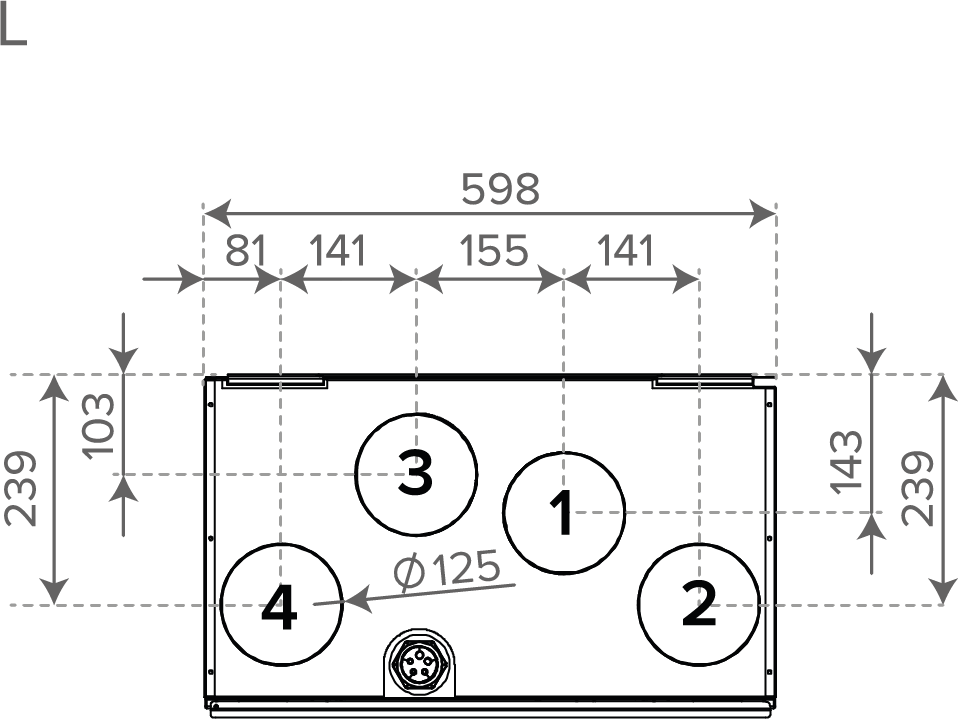

Figure 4. Duct outlets, L model (left-handed)

Locations of supports for HR cell

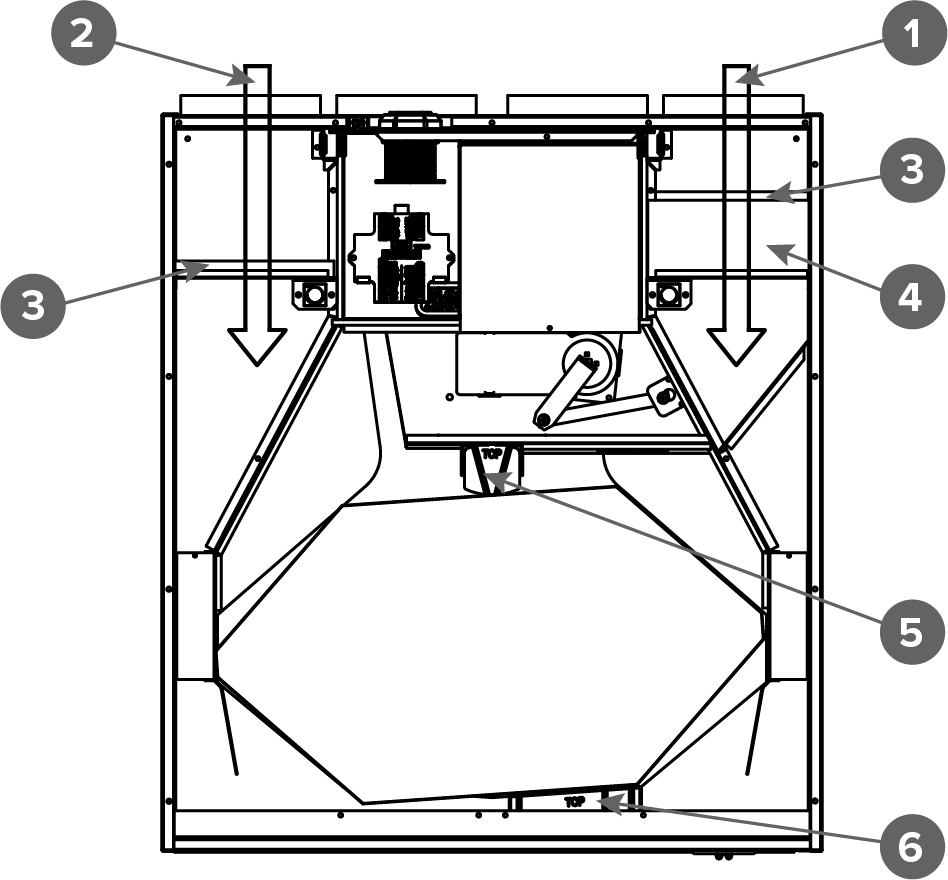

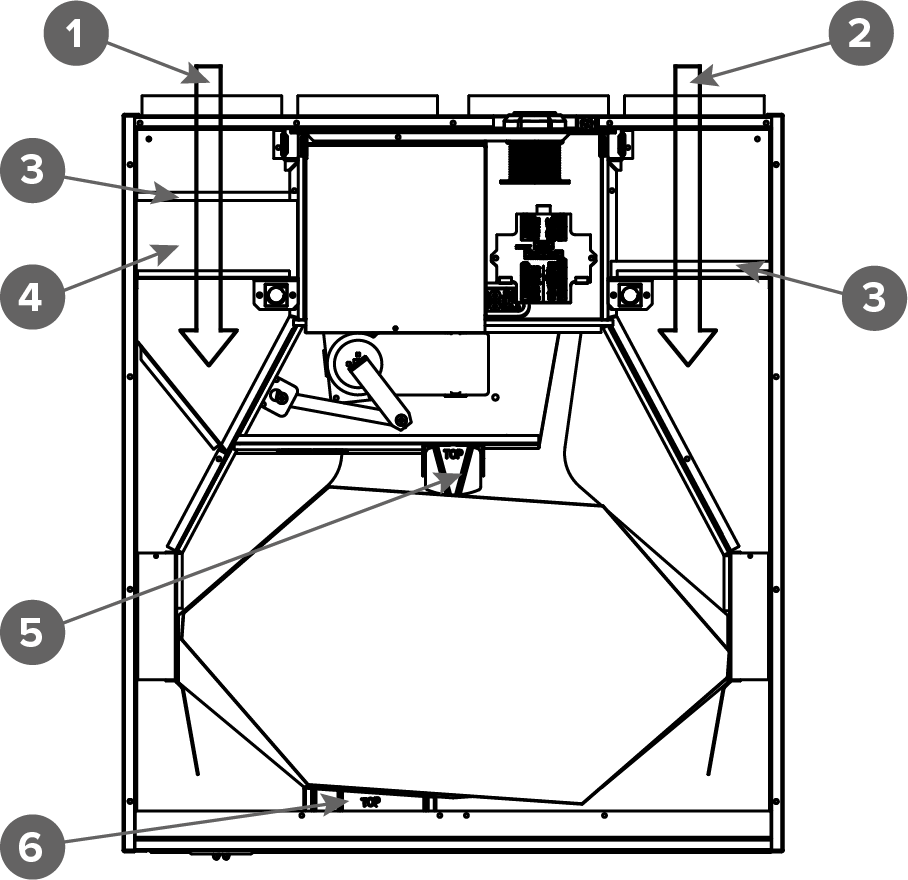

Figure 5. Vallox 51 MV (right- and left-handed model)

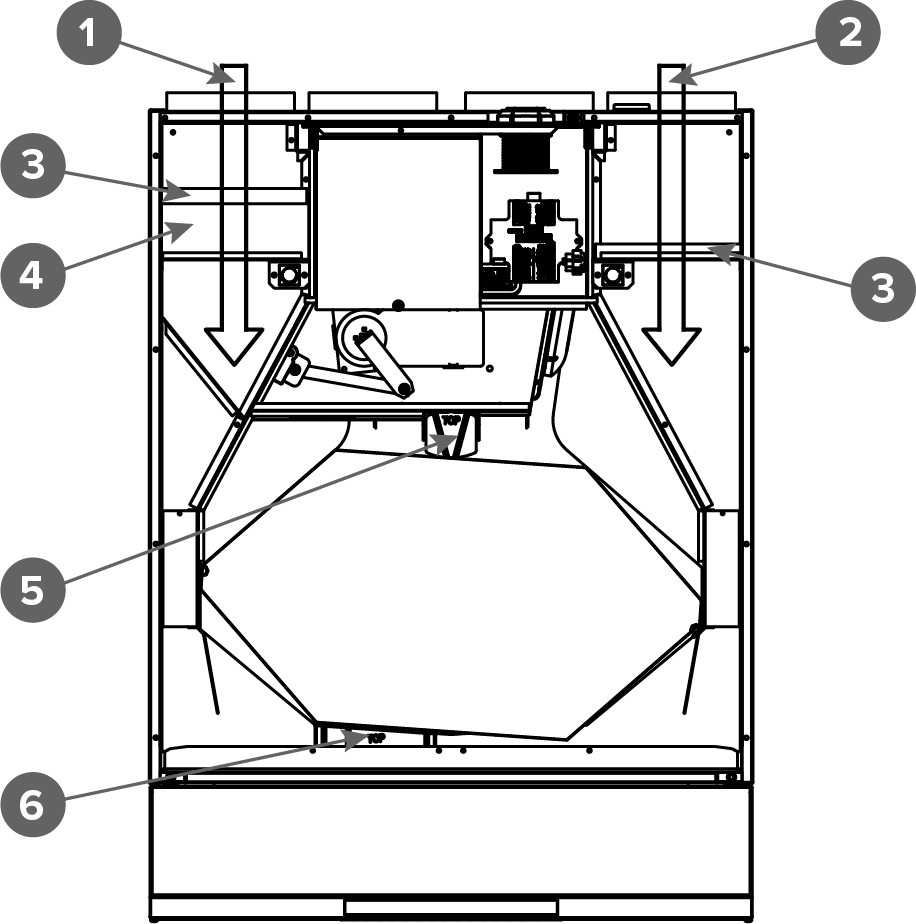

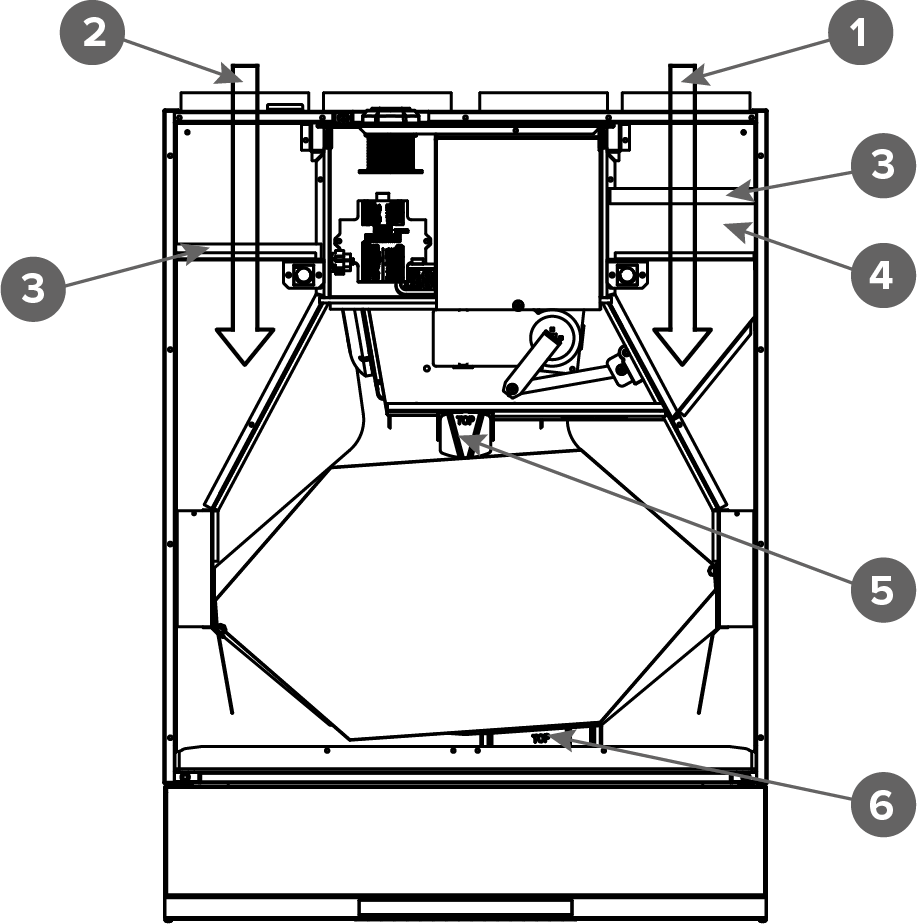

Figure 6. Vallox 51K MV (right- and left-handed model)
1
Supply air
2
Extract air
3
Coarse filter
4
Fine filter
5
Upper support of the cell
6
Lower support of the cell
