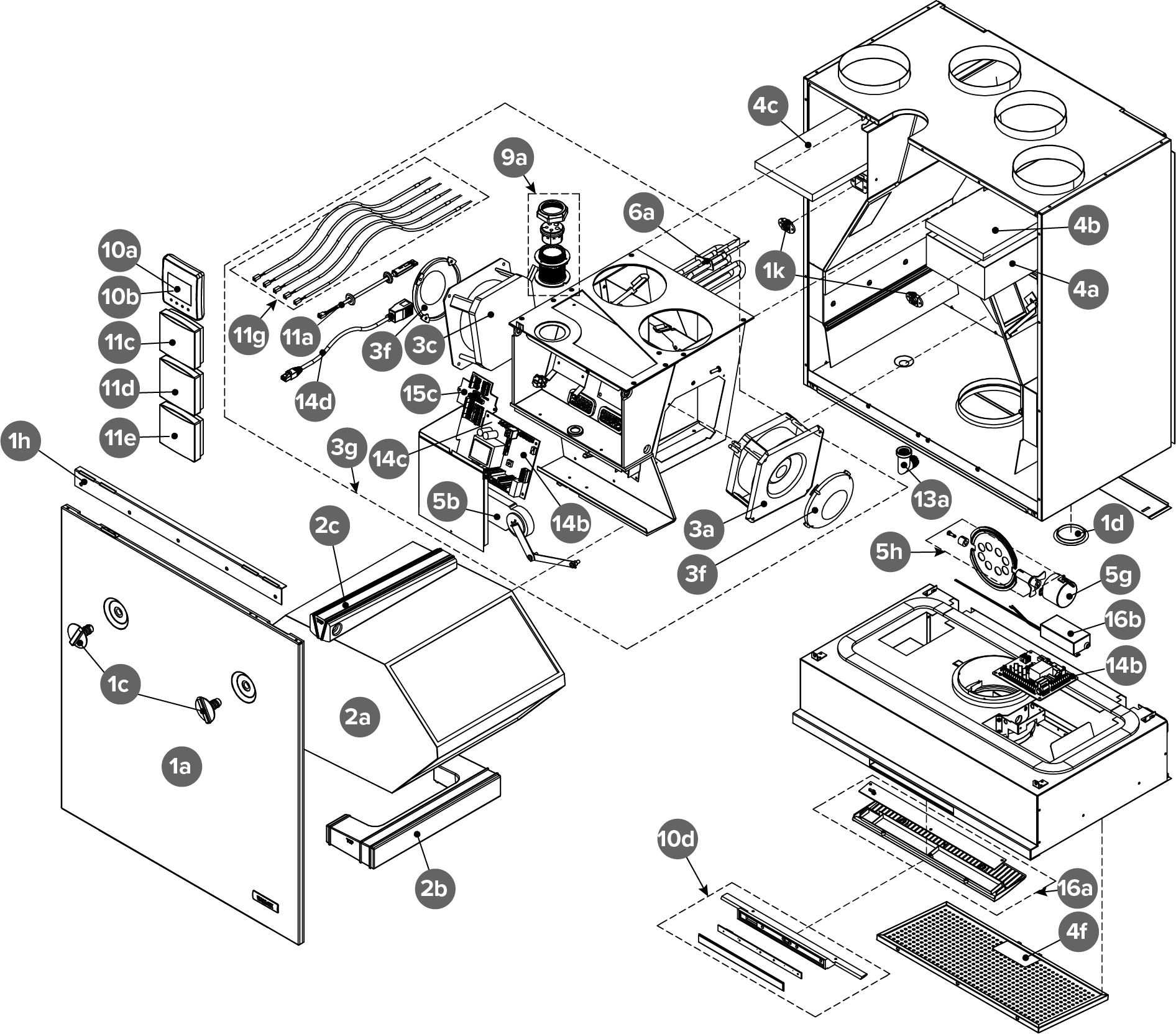

Exploded view and list of spare parts
| No. | Part | No. | Part |
|---|---|---|---|
| 1a | Door | 6a | Post-heating resistor |
| 1c | Door screw (supplied together with the lock nut of the door screw) | 9a |
Ceiling bushing Ceiling feed-through seal |
| 1h | Cover door mounting strip | 10a | MyVallox control panel |
| 1k | Lock nut of the door screw (supplied together with the door screw) | 10d | Front panel assembly |
| 2a | HR cell | 11a | Internal humidity and carbon dioxide sensor |
| 2b | Lower support for HR cell | 11c | MyVallox carbon dioxide sensor (optional) |
| 2c | Upper support for HR cell | 11d | MyVallox humidity sensor (optional) |
| 3a | Extract air fan | 11e | MyVallox VOC sensor (optional) |
| 3b | Supply air fan | 11g | NTC sensor kit |
| 3f | Air flow control grille | 13a | Siphon Vallox Silent Klick |
| 3g | Fan chamber assembly | 13c |
Plastic screw Cover plug |
| 4a | Fine filter for supply air | 14b | Motherboard |
| 4b | Coarse filter for supply air | 14c | Glass tube fuse 63mA slow 5x20mm |
| 4c | Coarse filter for extract air | 14d | RJ45 extension cable |
| 4f | Grease filter | 15c | Connection card |
| 5b | Bypass damper motor | 16a |
LED light Light fixture frame |
| 5g | Damper actuator | 16b | LED power source |
| 5h | Damper assembly |
