Input measurements

The measurements were taken using +55 °C water. Other values have been derived from these measurements.

A — Thermal input, kW

B — Difference in water temperature, °C

C — Water flow dm3/s

D — Air flow dm3/s

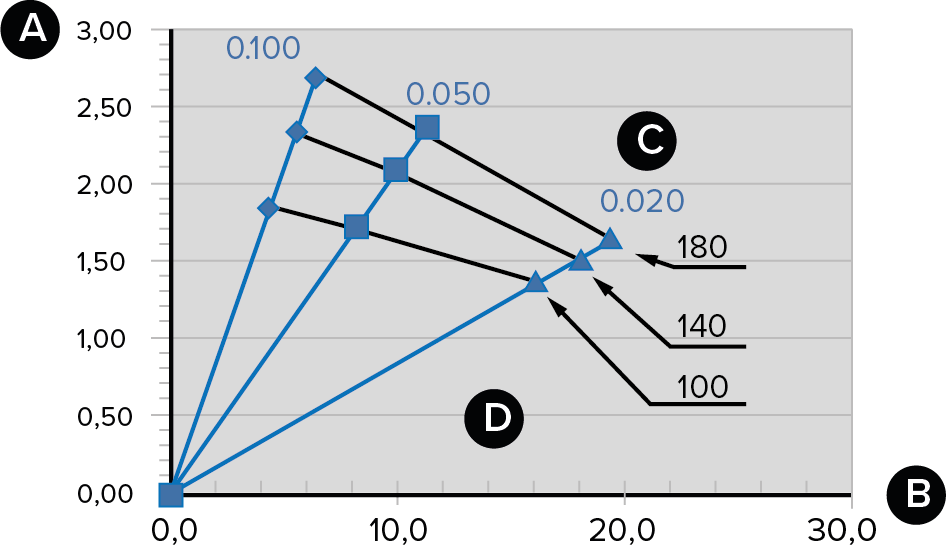

Figure 1. Vallox 245 MV liquid radiator ta1=15°C, tf1=40°C

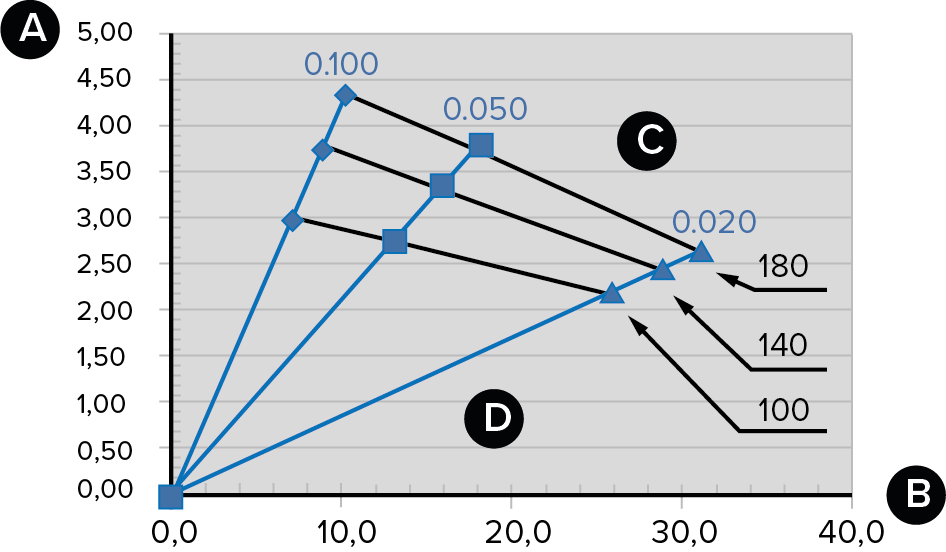

Figure 2. Vallox 245 MV liquid radiator ta1=15°C, tf1=55°C

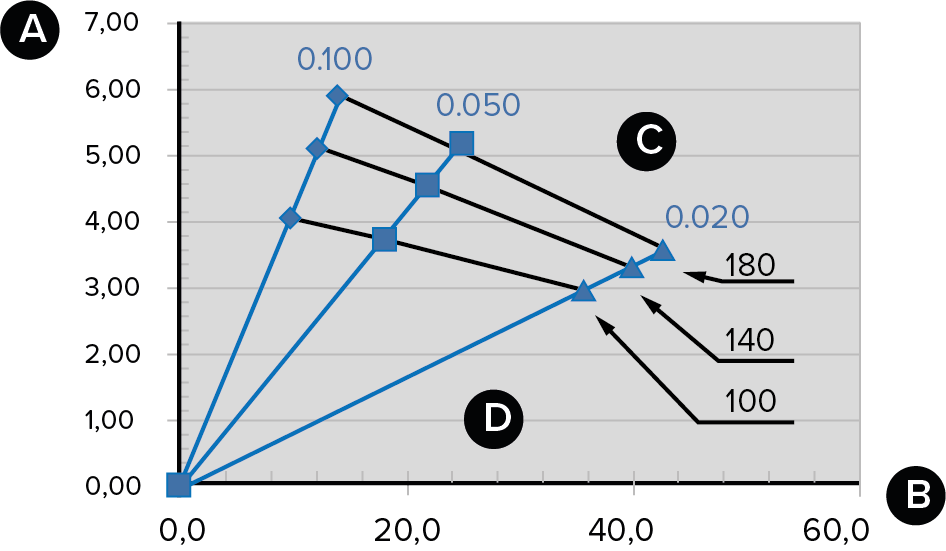

Figure 3. Vallox 245 MV liquid radiator ta1=15°C, tf1=70°C

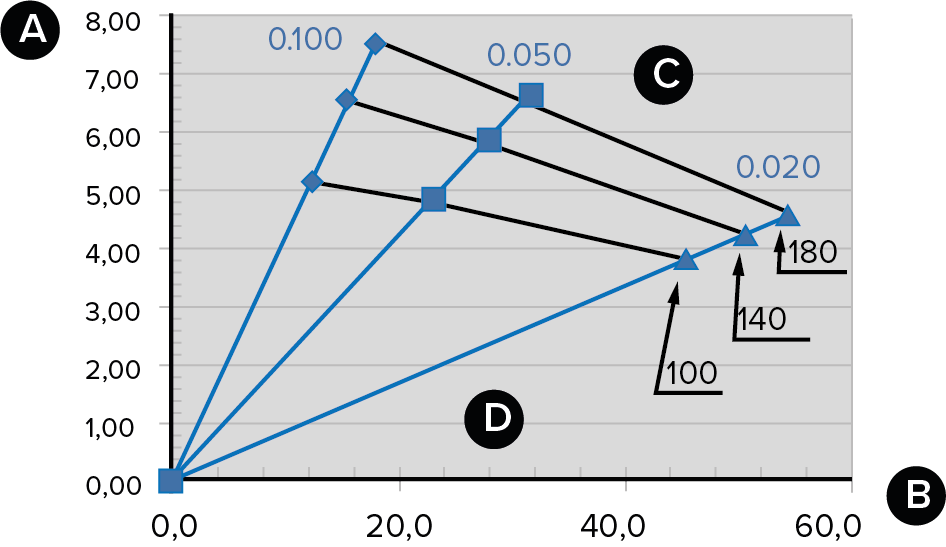

Figure 4. Vallox 245 MV liquid radiator ta1=15°C, tf1=85°C
