Viewing the information of the Custom mode

The Custom mode allows you to view information related to the ventilation unit mode.

  1. Open Operation menu and select the Custom mode.
  2. The basic settings of the selected mode will be displayed:

    This area shows the following information:

    • Supply airflow setting — Shows the set supply air flow setting.
    • Extract airflow setting — Shows the set extract air flow setting.
    • Supply air temperature setting — Shows the target supply air temperature set by the user.
    • Duration — Shows how long the Custom mode will stay active when the timer is used and the Custom mode is activated. The time is set in hours and minutes (hh:mm)

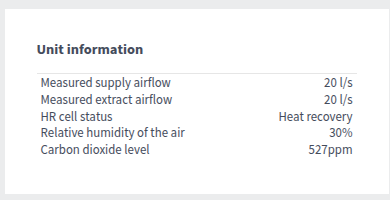

  3. More information in the Unit information area.
    • Measured supply airflow — Shows the current supply air flow (l/s or m3/h).
    • Measured extract airflow — Shows the current extract air flow (l/s or m3/h).
    • HR cell status:
      • Heat recovery — Heat from extract air is used to heat the outdoor air flowing in.
      • Cold recovery — Extract air cools the incoming outdoor air when it is at least two degrees cooler than the outdoor air.
      • HR cell bypass — Outdoor air bypasses the HR cell either partially or completely.
      • HR cell defrost — The HR cell is being defrosted.

    • Relative humidity of the air — Shows the highest relative humidity value measured by the ventilation unit.

    • Carbon dioxide level — Shows the highest carbon dioxide value measured by the ventilation unit.
