Viewing the Away mode information

This area shows the following information:

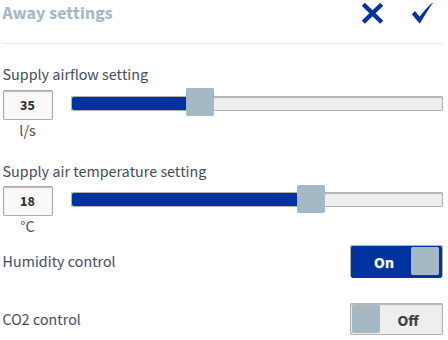

• Supply-airflow setting — Shows the supply air flow rate set for the ventilation unit (l/s or m3/h). If automatic boosting (e.g. humidity or carbon dioxide control) is enabled, the actual air flow rate may differ from the set value. The actual supply air flow and extract air flow rates are shown separately under Information.
• Supply air temperature setting — Shows the target supply air temperature set by the user.
• Humidity control — Indicates whether humidity boost is enabled.
• CO2 control — Indicates whether carbon dioxide boost is enabled.

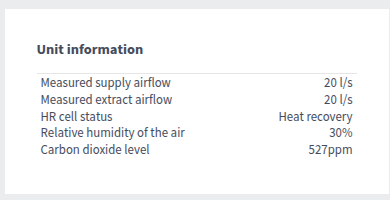

• Measured supply airflow — Indicates the current supply air flow (l/s or m³/h). If the ventilation unit is automatically boosting the air flow in response to an increased humidity or carbon dioxide level or a need for cooling, the actual air flow can be higher than the set value.
• Measured extract airflow — Indicates the current extract air flow (l/s or m³/h). The extract air flow setting is determined automatically based on the supply air flow, and the user cannot adjust it.
• HR cell status — Indicates the status of the ventilation unit HR cell. The options are:
  • Heat recovery — Heat from extract air is used to heat the outdoor air flowing in.
  • Cold recovery — Extract air cools the incoming outdoor air when it is at least two degrees cooler than the outdoor air.
  • HR cell bypass — Outdoor air bypasses the HR cell either partially or completely.
  • HR cell defrost — The HR cell is being defrosted.
• Relative humidity of the air — Indicates the highest relative humidity value measured by the ventilation unit.
• Carbon dioxide level — Indicates the highest carbon dioxide value measured by the ventilation unit.
