Draining of condensing water

Note:

MyVallox 51 CFi comes with the Vallox Silent Klick siphon package. See the instructions for siphon installation in the package or at https://www.vallox.com. When using an alternative siphon installation method, move the washer and locking part to the pipe connection mounted to the wall.

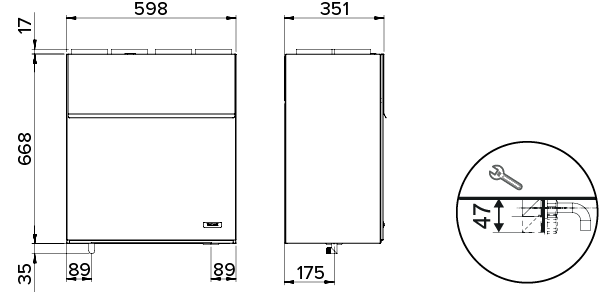

A Vallox Silent Klick siphon is installed to the bottom pool of the MyVallox 51 CFi unit, from which a condensing water tube is connected to, for example, a sink’s siphon or floor drain. You can also install an elbow to the bottom pool, in which case the Vallox Silent Klick siphon is installed to the condensing water tube so that its maintenance is possible.
