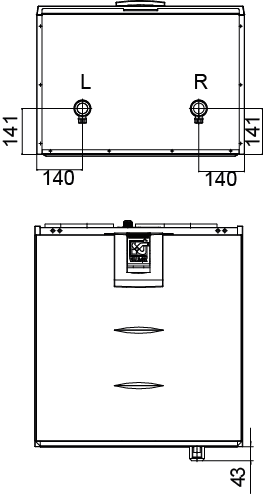

Dimensions and duct outlets

Figure 1. Dimensions and duct outlets

Inner diameter of the outlet collar ∅ 160 mm.

Duct outlets

  1. Supply air from the unit to the apartment
  2. Extract air from the apartment to the unit
  3. Exhaust air flowing outdoors from the unit
  4. Outdoor air to the unit

HR cell support locations

Figure 2. Vallox 110 MV
  1. Supply air
  2. Extract air
  3. Coarse filter
  4. Fine filter
  5. Upper support of the cell
  6. Lower support for the HR cell
