Mounting on the ceiling

The Vallox ventilation unit must be installed in a location where the temperature remains above +10°C. When the unit is installed without a protective enclosure, the location must be chosen so that its noise does not cause any disturbance (e.g. storage premises, technical spaces, and false ceilings).

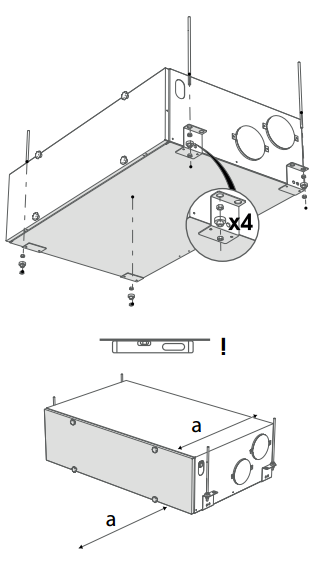

Vallox TSK Multi 50 MV and Vallox TSK Multi 80 MV must be mounted on the ceiling. Use the mounting hooks (4 pcs) delivered with the unit to mount the ventilation unit on the ceiling. Observe the weight of the unit (45 kg / 58.5 kg) when mounting.

Important:

The unit must be installed straight so that the condensing water that collects in the bottom pool drains through the condensing water outlet.

Note:

Reserve a space equal to the depth of the unit in front of the unit for servicing purposes.

The service space in front of Vallox TSK Multi 50 MV must be at least 530 mm.

The service space in front of Vallox TSK Multi 80 MV must be at least 600 mm.

Note:

Mount the ventilation unit in a place where the temperature does not fall below +10°C.

Note:

The whole length of the outdoor air duct to the unit and the exhaust air duct from the unit must be insulated using closed cell insulation.
