Mounting on the floor

NOTE:

Vallox 145 MV must always be installed on a base on the floor, or on the wall by using a mounting plate.

The base is optional. Mount the ventilation unit on the wall with a mounting plate, as shown in the figure.

NOTE:
Mount the ventilation unit in a place where the temperature does not fall below +10°C.

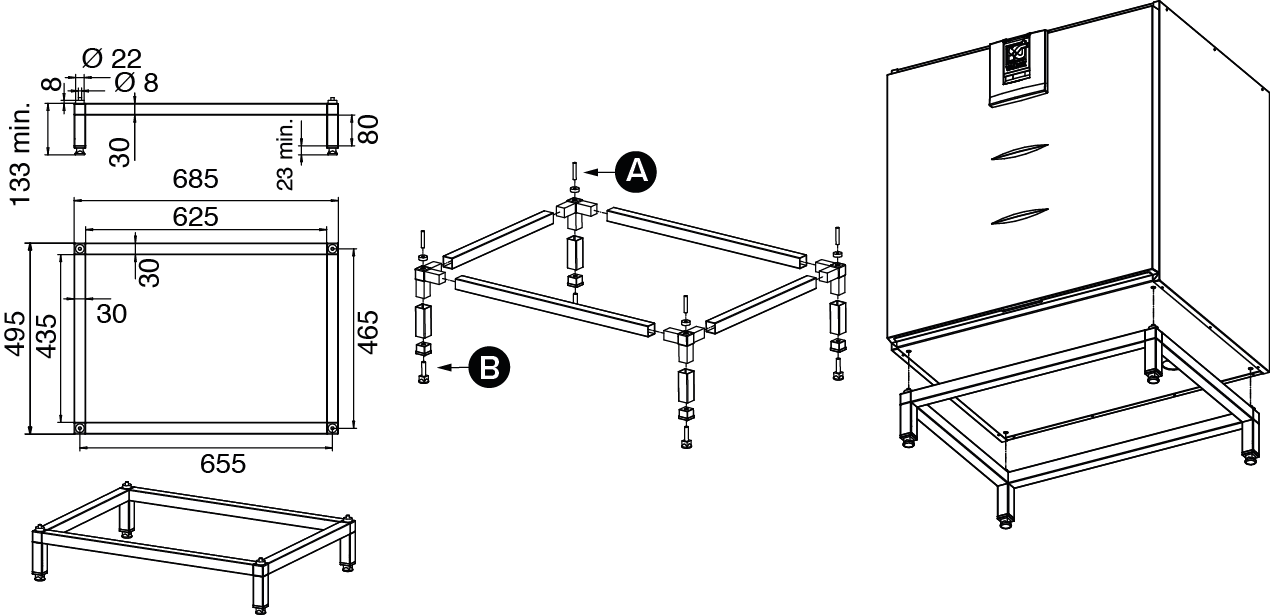

A — Thread bar M8 x 35, shorter thread upwards

B — The length of the adjusting screw is 37 mm.

  1. Adjust the base with adjusting legs to level it.
  2. Remove the rubber plugs (4 pcs) at the bottom of the unit.
  3. Place the unit on top of the base so that the bars of the base fit in the holes at the bottom of the unit.
Make sure that the unit is horizontally level after mounting.
