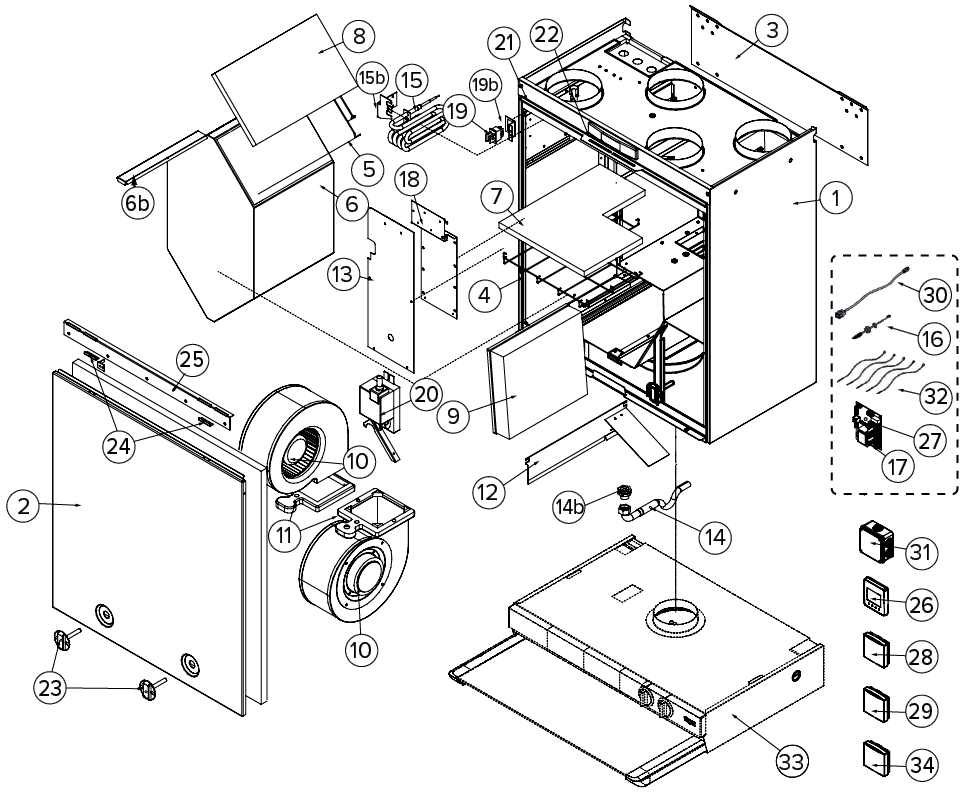

| 1 | Side panel |
| 2 | Door |
| 3 | Wall mounting plate |
| 4 | Filter stand (coarse filter for supply air) |
| 5 | Filter stand (coarse filter for extract air) |
| 6 | HR cell |
| 6b | Upper sealing strip of the HR cell |
| 7 | Coarse filter for supply air |
| 8 | Coarse filter for extract air |
| Until 26.5.2014 |
| Since 27.5.2014 |
| 9 | Fine filter for supply air |
| 10 | Fan |
| 11 | Rubber cushion of the fan |
| 12 | Summer/winter damper assembly (specify whether left- or right-handed in the order) |
| 13 | Lid of the electric box |
| 14 | Siphon Vallox Silent Klick |
| 14b | Flange nipple assembly |
| 15 | Post-heating resistor |
| 15b | Post-heating resistor mount (specify whether left- or right-handed in the order) |
| 16 | Internal humidity and carbon dioxide sensor |
| 17 | Motherboard |
| 18 | Circuit board mount |
| 19 | Safety switch |
| 19b | Safety switch enclosure |
| 20 | Damper motor |
| 21 | Front panel of the top part of the unit |
| 22 | Name plate |
| 23 | Finger screws |
| 24 | Cover door mount |
| 25 | Cover door mounting strip |
| 26 | MyVallox control panel |
| 27 | Glass tube fuse 80 mA, slow 5x20 mm |
| 28 | MyVallox humidity sensor (optional) |
| 29 | MyVallox carbon dioxide sensor (optional) |
| 30 | RJ45 extension cable |
| 31 | Connection box assembly |
| 32 | NTC sensor kit |
| 33 | Cooker hood |
| 31 | MyVallox VOC sensor (optional) |
