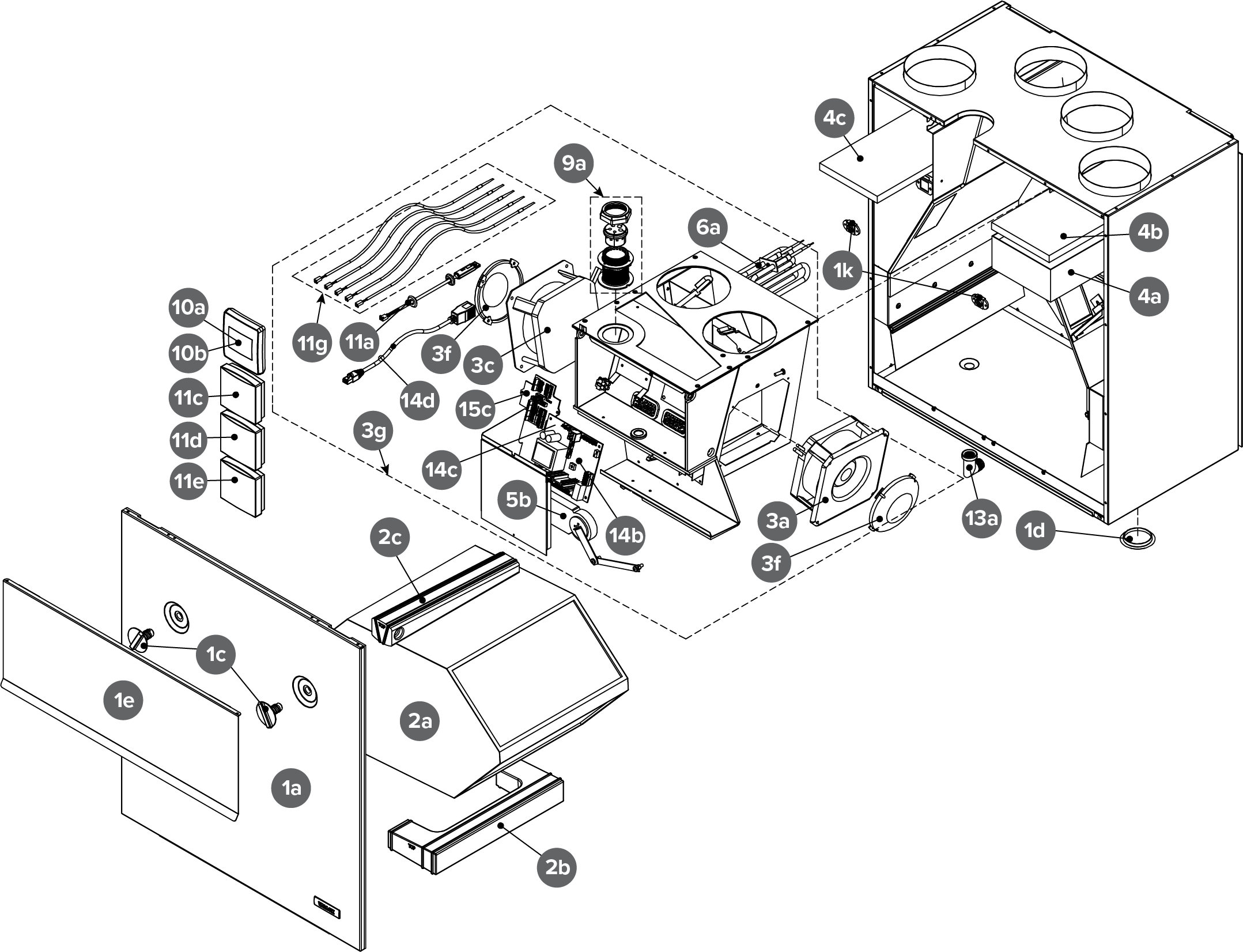

Exploded view and list of spare parts
| No. | Part |
|---|---|
| 1a | Door |
| 1c | Door screw (supplied together with the lock nut of the door screw) |
| 1d |
Plastic screw Cover plug |
| 1e | Door screw cover panel |
| 1k |
Lock nut of the door screw (supplied together with the door screw) |
| 2a |
HR cell (aluminium) HR cell (enthalpy) |
| 2b | Lower support for HR cell |
| 2c | Upper support for HR cell |
|
3a 3b |
Extract air fan Supply air fan |
| 3f | Air flow control grille |
| 3g |
Fan chamber assembly, R Fan chamber assembly, L |
| 4a | Fine filter for supply air |
| 4b | Coarse filter for supply air |
| 4c | Coarse filter for extract air |
| 5b | Bypass damper motor |
| 6a |
Post-heating resistor, R model Post-heating resistor, L model |
| 9a |
Ceiling bushing Ceiling feed-through seal |
| 10a | MyVallox Control panel |
| 10b | MyVallox Touch control panel |
| 11a | Internal humidity and carbon dioxide sensor |
| 11c | MyVallox carbon dioxide sensor (optional) |
| 11d | MyVallox humidity sensor (optional) |
| 11e |
MyVallox VOC sensor (optional) |
| 11g | NTC sensor kit |
| 13a | Siphon Vallox Silent Klick |
| 14b | Motherboard |
| 14c | Glass tube fuse 63mA slow 5x20mm |
| 14d | RJ45 extension cable |
| 15c | Connection card |
