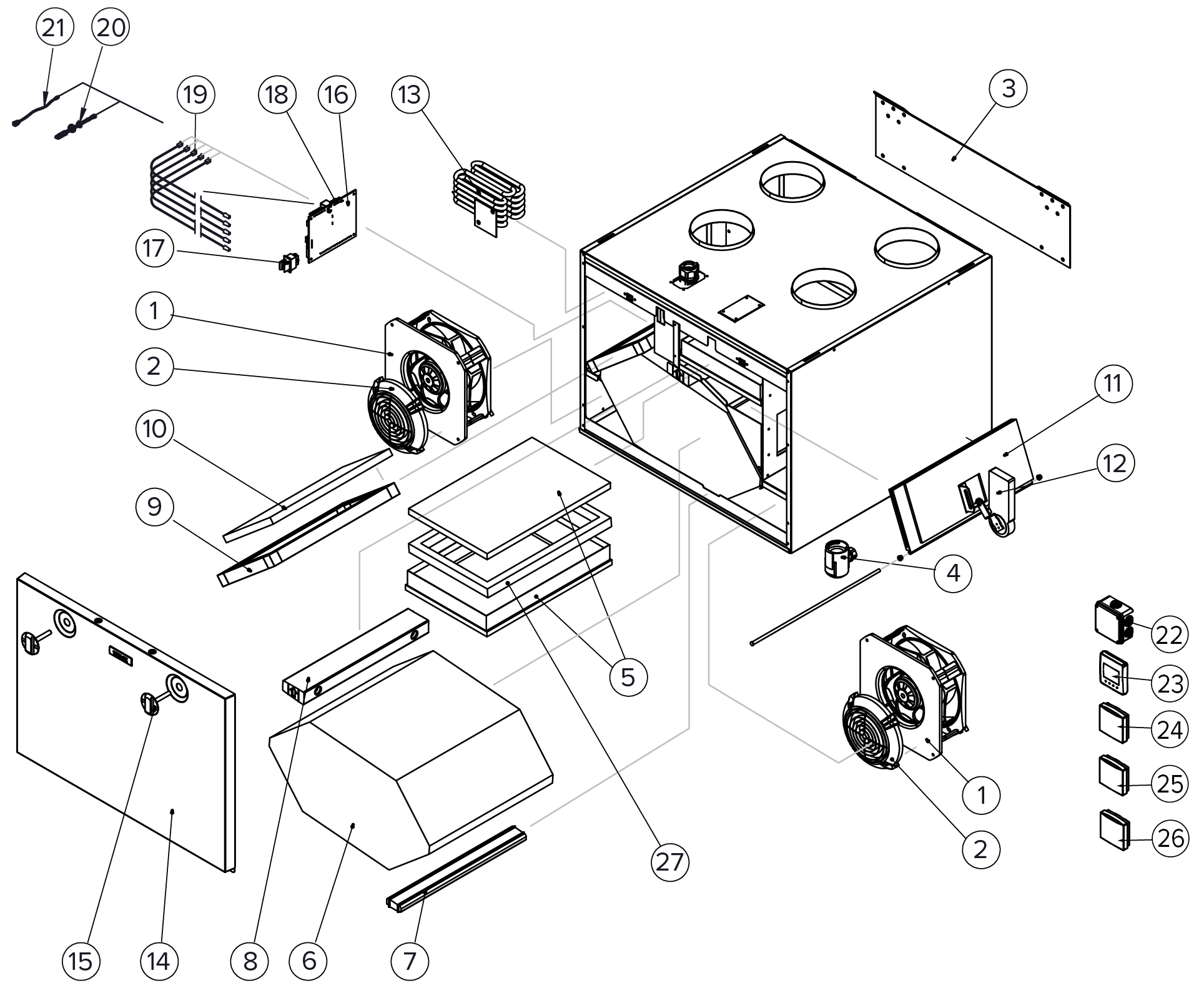

| 1 | Supply / extract air fan |
| 2 | Air flow control grille |
| 3 | Wall mounting plate |
| 4 | Siphon Vallox Silent Klick |
| 5 | Coarse and fine filter for supply air |
| 6 | HR cell |
| 7 | Lower support for HR cell |
| 8 | Upper support for HR cell |
| 9 | Filter frame (extraction) |
| 10 | Filter (coarse, extract) |
| 11 | HR cell bypass damper assembly |
| 12 | Damper motor |
| 13 | Post-heating resistor |
| 14 | Door |
| 15 | Mounting screw of the door |
| 16 | Motherboard |
| 17 | Safety switch |
| 18 | Glass tube fuse 63mA slow 5x20mm |
| 19 | NTC sensor kit |
| 20 | Internal humidity and carbon dioxide sensor |
| 21 | RJ45 extension cable |
| 22 | Connection box |
| 23 | MyVallox control panel |
| 24 | MyVallox humidity sensor (optional)
|
| 25 | MyVallox carbon dioxide sensor (optional) |
| 26 | MyVallox VOC sensor (optional) |
| 27 | Supply air filter frame |
