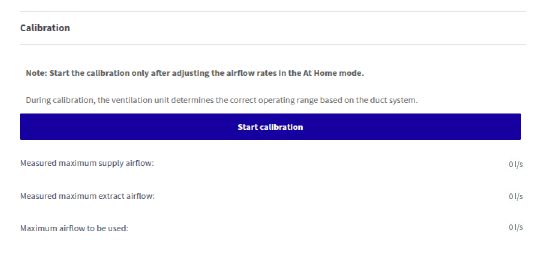

Once the At Home mode settings have been configured, the system is calibrated. During calibration, the unit determines the correct operating range in relation to the duct system. Calibration is mandatory and takes about one minute.

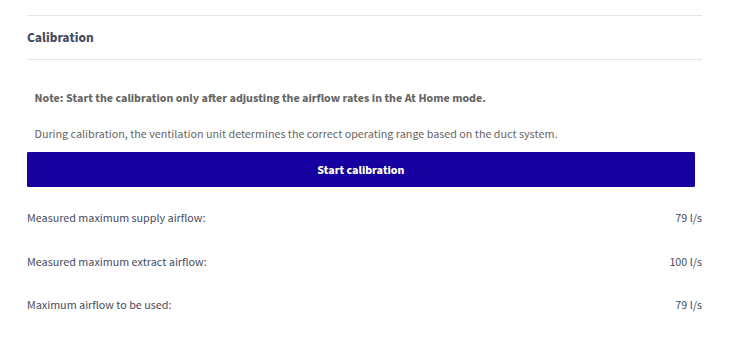

After calibration, the unit’s actual maximum air flow is shown in relation to the ducts in use.
There are two situations when the ventilation unit indicates that the airflow settings in the At home mode need to be checked:
The airflow is set too low in the At home mode, the Away mode airflow cannot be adjusted 30% lower.
The airflow is set too high in the At home mode, the Boost mode airflow cannot be adjusted 30% higher.
