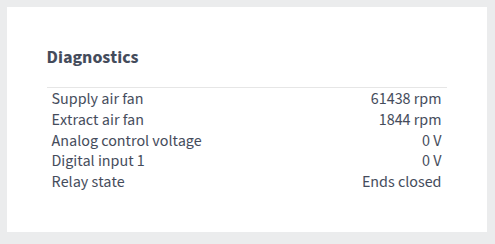

The Diagnostics screen allows you to monitor real-time values of the ventilation unit, such as air flows, fan speeds and the status of the digital inputs and relay.
Air flows and fans:
Measured supply air flow — Measured air flow on the supply air side (l/s).
Measured extract air flow — Measured air flow on the extract air side (l/s).
Supply air fan — Fan speed in revolutions per minute (rpm).
Extract air fan — Fan speed in revolutions per minute (rpm).
Digital inputs and relay status:
This information is only visible if it has been enabled under Expert settings.
Digital input 1 — Shows the voltage (0 V or 24 V) on digital input 1 of the ventilation unit.
Digital input 2 — Shows the voltage (0 V or 24 V) on digital input 2 of the ventilation unit.
Relay status — Shows the status of the relay (open/closed).
