Viewing the Boost mode information

To view the basic settings of the Boost mode:

  1. Select Operation menu.
  2. Click on the Boost mode in the Ventilation modes area to select it.
  3. Select Activate where required.
  4. The basic settings of the selected mode will be displayed:

    This area shows the following information:

    • Fan speed — Indicates the fan speed. If the automatic fan speed boost is active, the set value is shown in brackets, followed by the real fan speed.
    • Supply air temperature setting — Indicates the temperature of the air blown into the apartment and its set value (in brackets), if the supply air is warmer than the set value.
    • Humidity sensor — Indicates whether the humidity sensor is on or off.
    • Carbon dioxide sensor — Indicates whether the carbon dioxide sensor is on or off.
    • Duration — Indicates the duration of boosted ventilation when the Boost mode is activated. The duration is given as hh:mm.

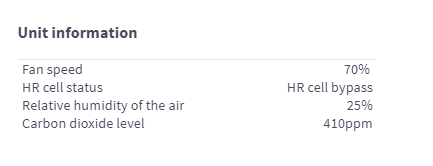

  5. More information will be displayed in the Information area.
    • Fan speed — Indicates the fan speed. If an automatic fan speed boost feature is active, the set value is shown in parentheses, followed by the real fan speed.
    • HR cell status — Indicates the status of the heat recovery cell (HR cell) of the ventilation unit. The status options are:
      • Heat recovery — The HR cell heats the air flowing in from outdoors with extract air.
      • Cold recovery — The HR cell cools the air flowing in from outdoors with extract air when the temperature of the air that is extracted from the apartment is two degrees lower than the outdoor temperature.
      • HR cell bypass — The inflowing air bypasses the HR cell.
      • HR cell defrost in progress — The inflowing air bypasses the HR cell.
    • Relative humidity of the air — Indicates the highest relative humidity value measured by the sensors.
    • Carbon dioxide level — Indicates the highest carbon dioxide value measured by the sensors.
