Viewing the Away mode information

To view the basic settings of the Away mode:

  1. Select Operation menu.
  2. Click on the Away mode in the Ventilation modes area to select it.
  3. The basic settings of the selected mode will be displayed:

    This area shows the following information:

    • Fan speed — Shows the fan speed. If the automatic fan speed boost is active, the set value is shown in brackets, followed by the real fan speed.
    • Supply air temperature setting — Shows the target supply air temperature set by the user.
    • Humidity control — Shows whether humidity boost is enabled.
    • CO2 control — Shows whether carbon dioxide boost is enabled.

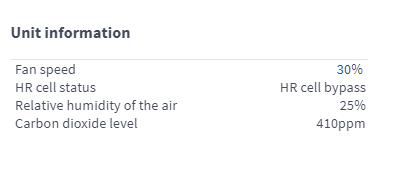

  4. More information will be displayed in the Information area.
    • Fan speed — Shows the fan speed. If the automatic fan speed boost is active, the set value is shown in brackets, followed by the real fan speed.
    • HR cell status:
      • Heat recovery — Heat from extract air is used to heat the outdoor air flowing in.
      • Cold recovery — Extract air cools the incoming outdoor air when it is at least two degrees cooler than the outdoor air.
      • HR cell bypass — Outdoor air bypasses the HR cell either partially or completely.
      • HR cell defrost — The HR cell is being defrosted.
    • Relative humidity of the air — Shows the highest relative humidity value measured by the ventilation unit.
    • Carbon dioxide level — Shows the highest carbon dioxide value measured by the ventilation unit.
